PROX50 ito pet film

Product Categories
Mianyang Prochema Commercial Co.,Ltd.
Contact Now

PROX50 ito pet film

Place of Origin : China

Brand Name : Prochema

Certification : ROHS

Model Number : PROX-50 ITO FILM

Resistance : 50-60ohm/sq

Thickness : 0.125mm or 0.175mm

Roll width : 1200mm

Roll length : 100-200m

Transparency : 77%

Advantage : 11 years production experience

Supply to : World top 500 companies

MOQ : 50sqm

Price : USD23/sqm

Packaging Details : Strong Carton

Delivery Time : within 7 days after receiving your payment

Payment Terms : T/T,L/C at sight,western union,paypal

Supply Ability : 20000sqm per month

Contact Now

Trial Kit For LED Glass/Flexible LED Film

ITO Film: 50ohm*0.175mm*1200mm*10m

Silver Paste: 20g

Copper foil: 1 roll

LED light: 50pcs

Model

Resistance

Thickness

Roll width

Application

PROX-50

50-60ohm/sq

125/175micron

600/1200mm

LED Glass/LED film/Decorative led glass film

PROX50 ito pet film

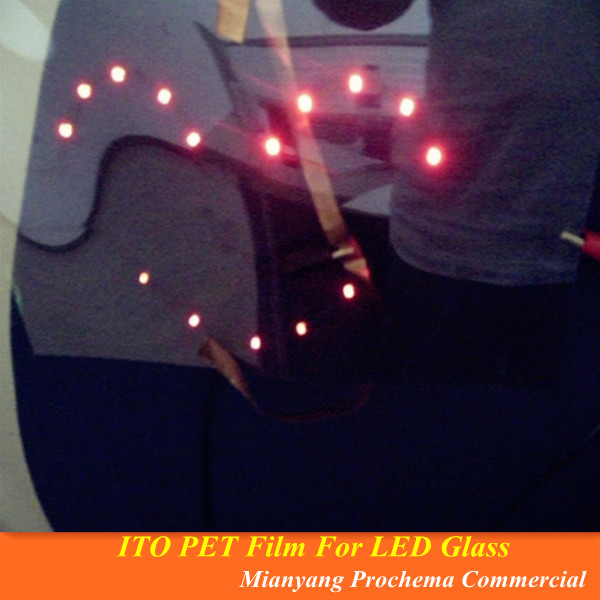

ITO Film For LED Film show

PROX50 ito pet film

PROX50 ito pet film

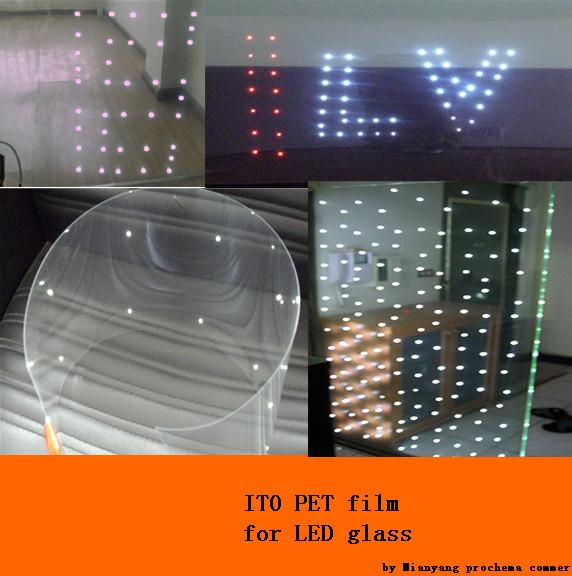

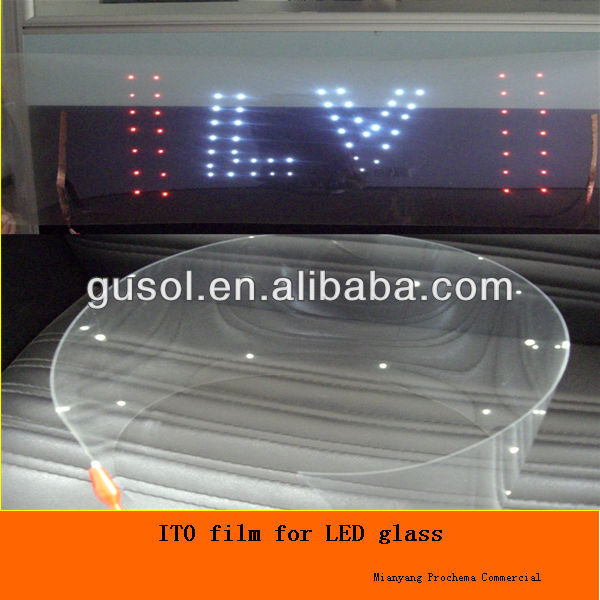

LED glass is a high-tech product which is inserted with led luminous source to make different type and pattern.

Due to stable resistance and high transparency, PROX-50 is quite suitable for producing LED FILM GLASS.

Prochema is specializing in ito film production for 11 years

Item

PROC-14

PROX-35

PROX-50

PROX-100

PROX-200

PROX-430

Thickness

(microns)

50/125/175

125/175

125/175

50/100/125/175/188

125/175

188

Width

(mm)

1200

600,1200

600,1200

600,1200,1900

600,1200

406

Resistance

(ohm/sq)

12-15

30-40

50-60

90-110

190-220

400-450

Application

EMI shielding,

Transparent Electrode

Electroluminescent printing/EL panel,


EMI shielding, Anti-static,

E-paper, touch sensing,

Capacitive touch key,

PDLC glass film

ITO Heating Pad

Electrode,

EL printable lamps

Touch screen,

Sensing

PROX50 ito pet film

Product Warranty

1.ROHS certificate and MSDS document available;

2.Ten years production experience to assure 100% high quality;

3.Factory competitive price, directly supply to world top 500 companies;

4.Strict test before shipping;

5.Best discount freight cost to assure quick delivery;

6.Responsible for each batch;

7.Good after-sale service, customers' feedback are especially welcome.

Technical Data For 50ohm/sq ITO PET FILM

Model:PROX-50 (50ohm/sq,125 or 175micron)

Property

Units

Data

Test Method

1

Visible Light Transmission

%

≥80

Spectrophotometer

2

Hue (b value)

-

0≤b≤4

Spectrophotometer

3

Haze

%

≤1.5

Haze Meter

4

Thickness

micron

125 or 175

Spiral Micrometer

5

Square Resistance

ohm/sq

45-55

Four Probe Resistivity Meter

6

Resistance Uniformity

+5

Four Probe Resistivity Meter

7

Surface Free Energy

J.m.2

≥30

Angle Contact Metering System

8

Coating Adhesion

%

≤2

250# Tape Tearing For Three Times

9

Quality PROX50 ito pet film wholesale
